1. Why "Video Twin" Emerged
Digital twin has become a buzzword in smart city and industrial IoT — but many teams hit the same wall: 3D modeling is expensive, time-consuming, and drifts out of sync with reality. The result is often a visually impressive dashboard that no one actually uses.
Video twin (also called real-scene twin) takes a different approach: instead of building a precise 3D model, it fuses live video streams directly into an existing 3D scene. Real camera footage becomes the "skin" of the 3D space — achieving low-cost, always-current visual management without constant re-modeling.
2. Digital Twin vs Video Twin: Key Differences
| Dimension | Traditional Digital Twin | Video Twin (Real-Scene Twin) |
|---|---|---|
| Core input | 3D models (BIM / point cloud / CAD) | Live video streams + lightweight 3D base |
| Build cost | High — months of detailed modeling | Low — reuses existing cameras |
| Realism | Depends on model accuracy; drifts over time | Video is reality — always in sync |
| Real-time accuracy | Weak — model updates lag behind reality | Strong — video-driven, millisecond sync |
| Maintenance | High — scene changes require re-modeling | Low — cameras update automatically |
| Best for | Planning, design, simulation | Operations, monitoring, real-time control |
| Typical use cases | Urban planning, factory simulation, BIM | Smart parks, ports, traffic, ship locks |
In one line: Digital twin is a virtual world you build. Video twin is the real world fused into 3D space in real time. They're complementary, not competing.
3. What Is a Video Twin?
A video twin automatically aligns live video frames with a 3D scene's coordinate system and renders them onto the corresponding 3D surfaces in real time. Operators see both the true video detail and the spatial overview — in a single interface.
Three defining traits
- Real-time: Video-driven, millisecond sync with reality — no manual model updates
- Low cost: Reuses existing surveillance cameras, no new hardware required
- Interactive: Click any area on the 3D map to jump directly to the live camera feed for that location
4. How Video-3D Fusion Works
4.1 Video-3D Registration
The system uses each camera's physical position, focal length, and orientation to align video frame coordinates with the 3D scene's coordinate system. Accuracy here is critical — misalignment causes people, vehicles, and objects to appear at wrong positions in 3D space, making the system useless in practice.
4.2 Video Projection & Rendering
Once aligned, video frames are projected onto the corresponding 3D model surfaces and rendered in real time. SuperMetaX supports Unreal Engine, Unity, Cesium, and Three.js, and also provides a proprietary fusion engine optimized for high-channel-count industrial deployments.
| Engine | Best For | Characteristics |
|---|---|---|
| Unreal Engine | High-fidelity factory / campus twins | Best visual quality, higher hardware demand |
| Unity | Industrial visualization, light deployments | Strong cross-platform, rich ecosystem |
| Cesium | City-scale GIS scenes | Native GIS support, ideal for large areas |
| Three.js | Browser-based lightweight display | No client install required, B/S friendly |
| SuperMetaX Engine | Dense multi-camera industrial scenes | Optimized for video fusion, lowest latency |
4.3 Interactive Control
The fused 3D scene becomes a live, interactive monitoring interface: click a camera icon on the 3D map to open its live feed; alerts are pinpointed and highlighted in 3D space; historical tracks and sensor data overlay on real-world positions. "See where it is, manage it there."
5. Deployment Scenarios
Traffic Panoramic Video Twin

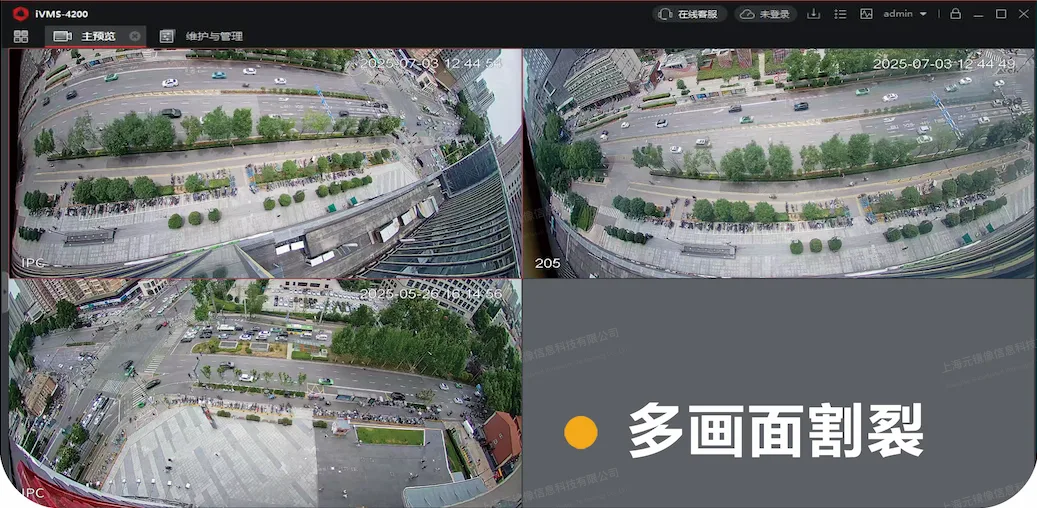

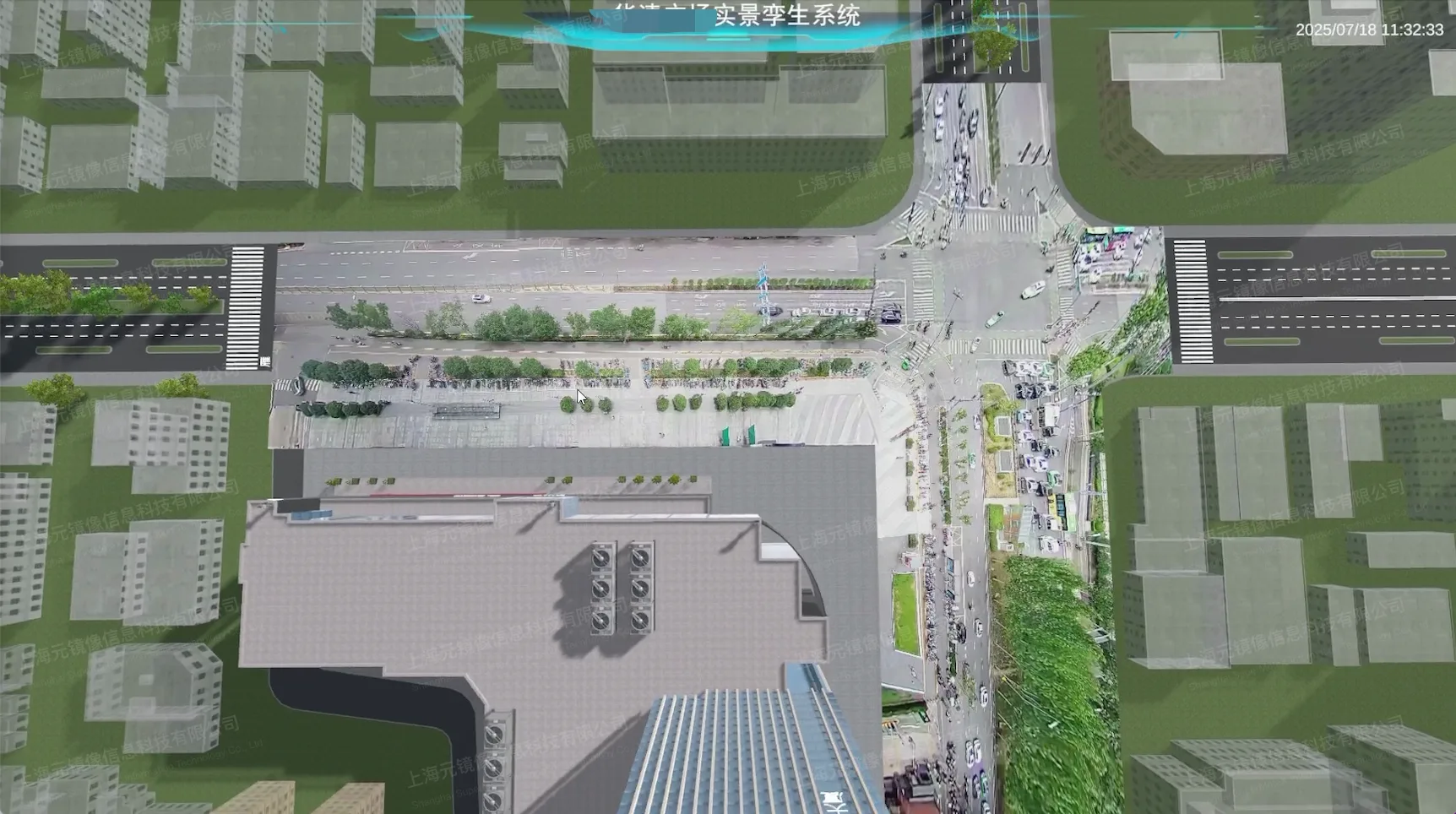

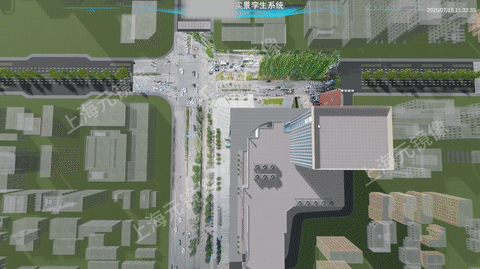

Fragmented split-screen views make it hard for traffic control centers to maintain situational awareness. A video twin fuses road camera feeds into a 3D traffic scene — one screen covers the full road network. Click any intersection on the 3D map to see its live feed; alerts are located precisely in 3D space.
Ship Lock Video Twin

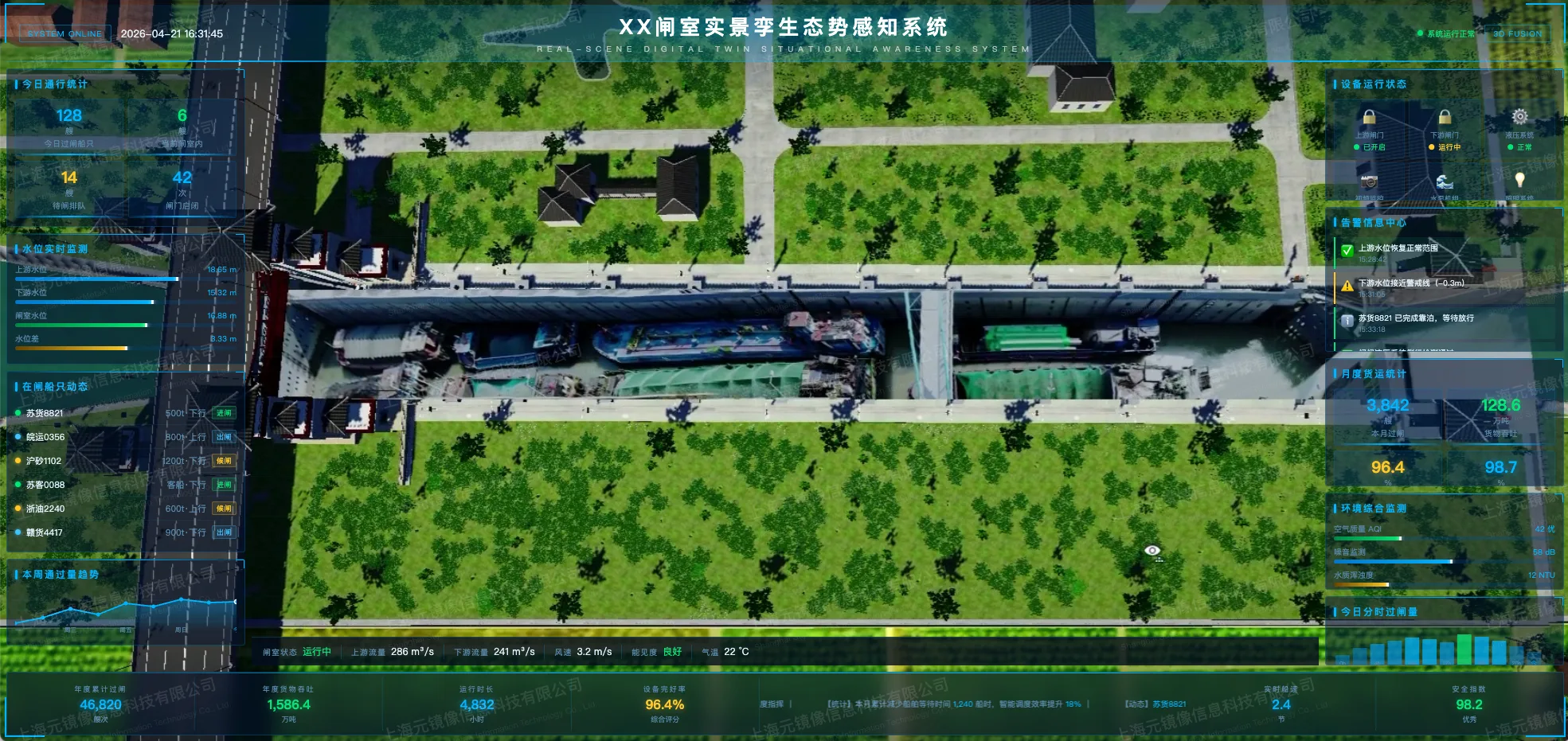

Traditional ship lock monitoring relies on split-screen views that can't convey the full operational picture — chamber, upper gate, lower gate, and upstream/downstream all at once. The video twin solution reuses existing cameras on both sides of the chamber, fusing their feeds into a 3D lock model. Operators get full situational awareness from a single 3D interface, with one-click access to any camera's live feed.
6. When to Use Each
| Scenario | Recommended | Reason |
|---|---|---|
| Design / planning phase — need simulation | Traditional digital twin | Requires precise geometry for design validation |
| Existing cameras — need fast visual operations | Video twin | Reuses infrastructure, short deployment cycle |
| Frequently changing environment (construction, layout) | Video twin | Video reflects reality automatically — no re-modeling |
| High-fidelity visual presentation required | Traditional digital twin | Detailed modeling yields better render quality |
| Live operations, alerts, and field inspection | Video twin | Real-time — shows actual people and equipment status |
| City-scale GIS scenes | Both combined (GIS + video fusion) | Cesium can carry both geographic data and live video |
7. FAQ
Can digital twin and video twin be used together?
Yes. A common pattern is a lightweight 3D base (Cesium / Three.js) carrying GIS and BIM data, with live video streams fused in simultaneously — macro spatial awareness plus real-world detail in one view. This is the typical SuperMetaX deployment model.
Are "video twin" and "real-scene twin" the same thing?
Yes — two names for the same concept: fusing live video streams into a 3D scene in real time. SuperMetaX uses both terms interchangeably, referring to the same system.
How many cameras are needed?
No minimum. Start with a few key positions and expand over time. Projects with existing NVR/VMS can connect via RTSP directly — no hardware changes required.
Does video twin require high-precision 3D models?
Far less than a traditional digital twin. The 3D base only needs to provide basic spatial topology — no detailed texture modeling required. Video stream quality and camera coverage matter far more.
Summary
Digital twin excels at planning, simulation, and design validation. Video twin excels at operations, monitoring, and real-time control. For projects that already have camera infrastructure, video-3D fusion is the fastest path to digital twin value at the lowest cost.
